BFB 3000 Operations manual

Initial Z height set

step

If the blade will not fit between the bed and the end of the nozzle

• undo the Z adjuster lock nut whilst holding the Z height adjuster

to stop it moving.

• Turn the adjuster clockwise as shown (Fig.1).

• Re-lock with the locking nut whilst holding the adjuster to keep

the new position

• Re-home the head to check the height with the scraper as shown

in (Fig.2)

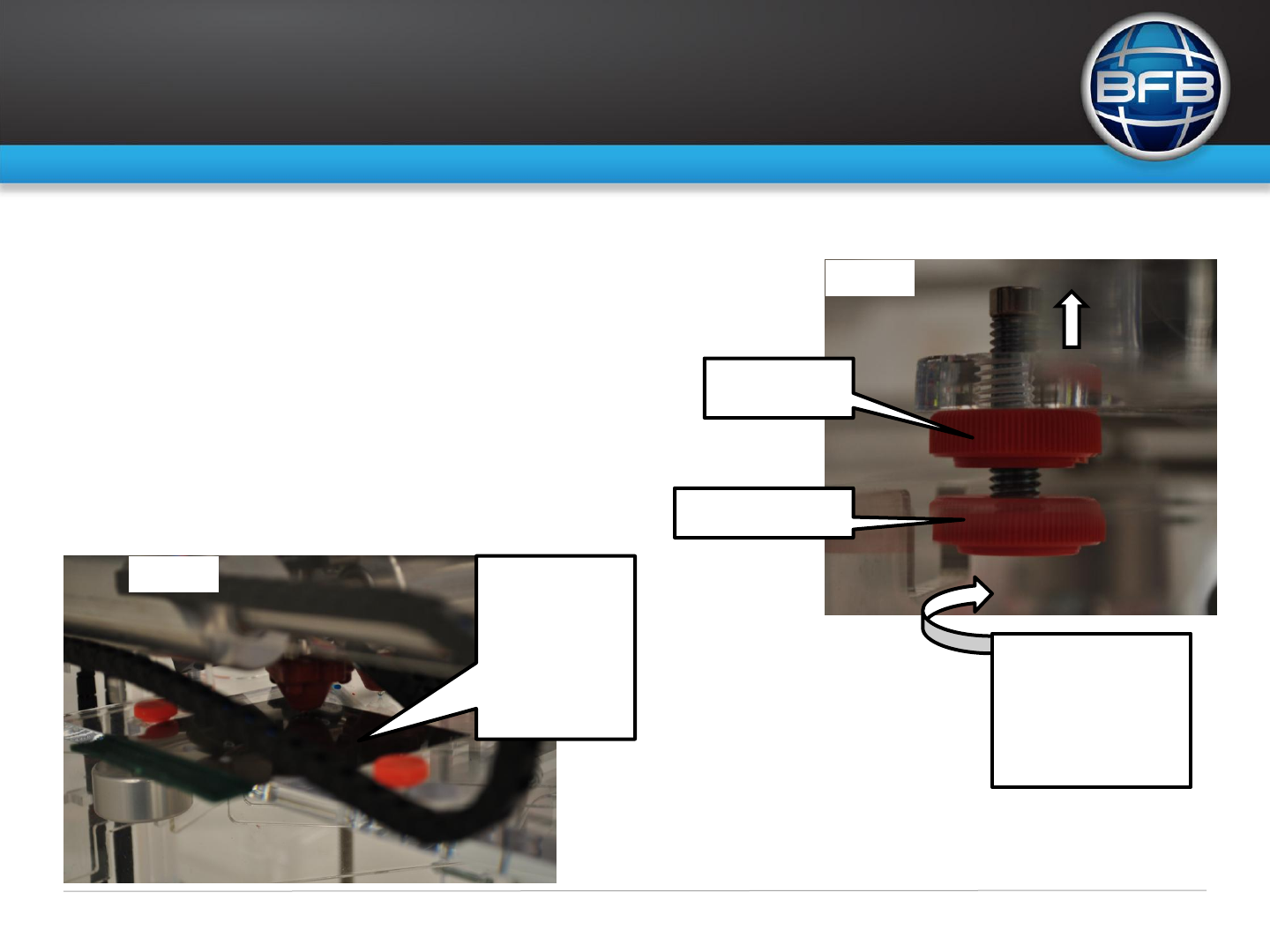

Z height adjuster

Z Adjuster

locking nut

Turn the Z height

adjuster clockwise as

shown

To increase the gap

between the bed and

nozzle.

Fig.1

If the blade will still not fit repeat

step

If the gap is to big go to 3

step

scraper blade

slides between

the end of the

nozzle and the

bed with little

resistance

Fig.2
