BFB 3000 Operations manual

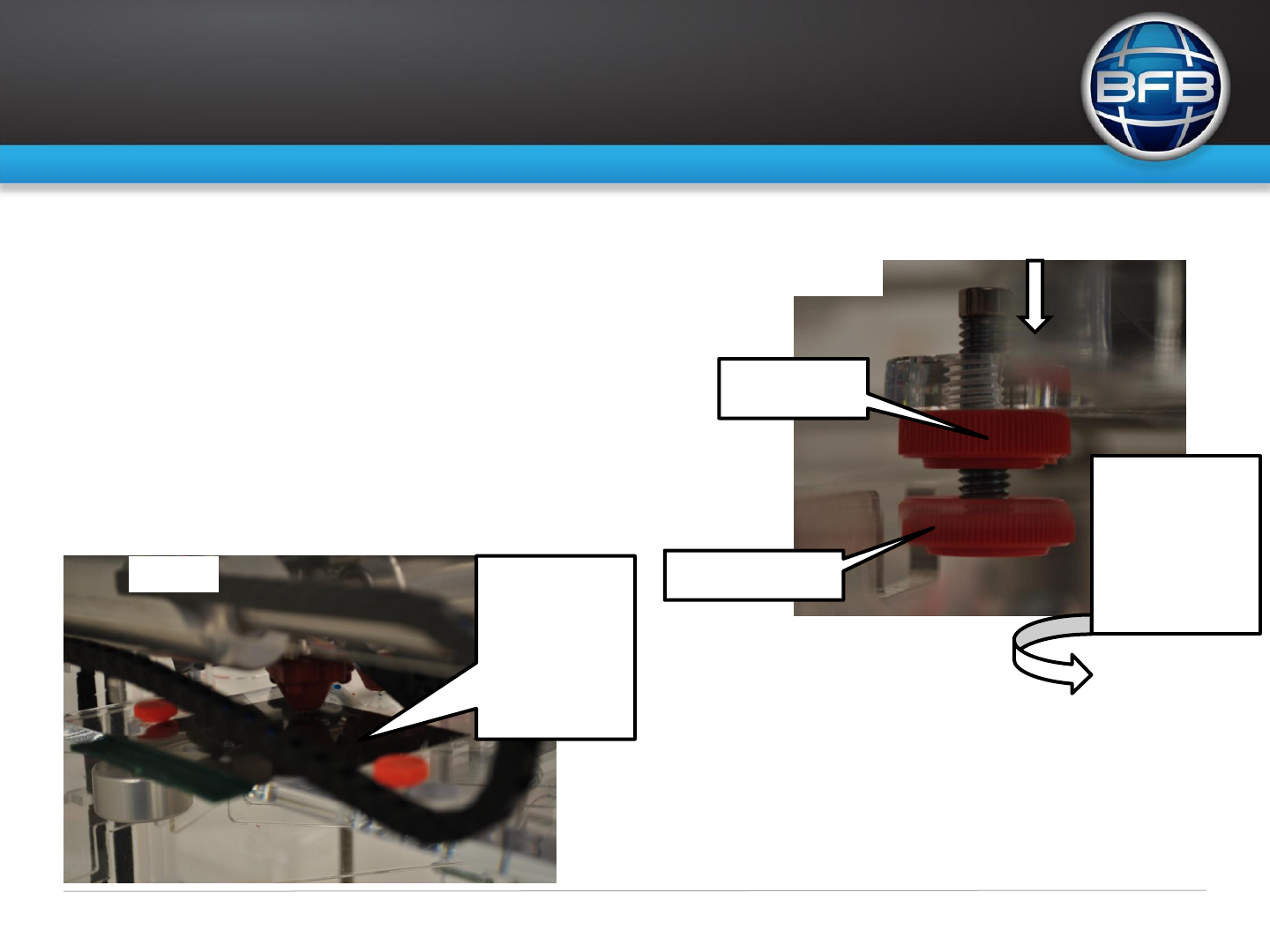

Z height adjuster

Z Adjuster

locking nut

Turn the Z height

adjuster anti-

clockwise as

shown

To decrease the

gap between the

bed and nozzle.

Fig.1

Initial Z height set

step

If the blade is too loose and the gap between the bed and the end of

the nozzle is too big.

• Undo the Z adjuster lock nut whilst holding the Z height adjuster

to stop it moving.

• Turn the adjuster anti-clockwise as shown (Fig.1).

• Re lock with the locking nut whilst holding the adjuster to keep

the new position

• Re home the head to check the height with the scraper as shown

in (Fig.2)

scraper blade

slides between

the end of the

nozzle and the

bed with little

resistance

Fig.2

If the blade will not fit go to 2

step

If the gap is to big repeat 3

step
